Showcases General
Trends

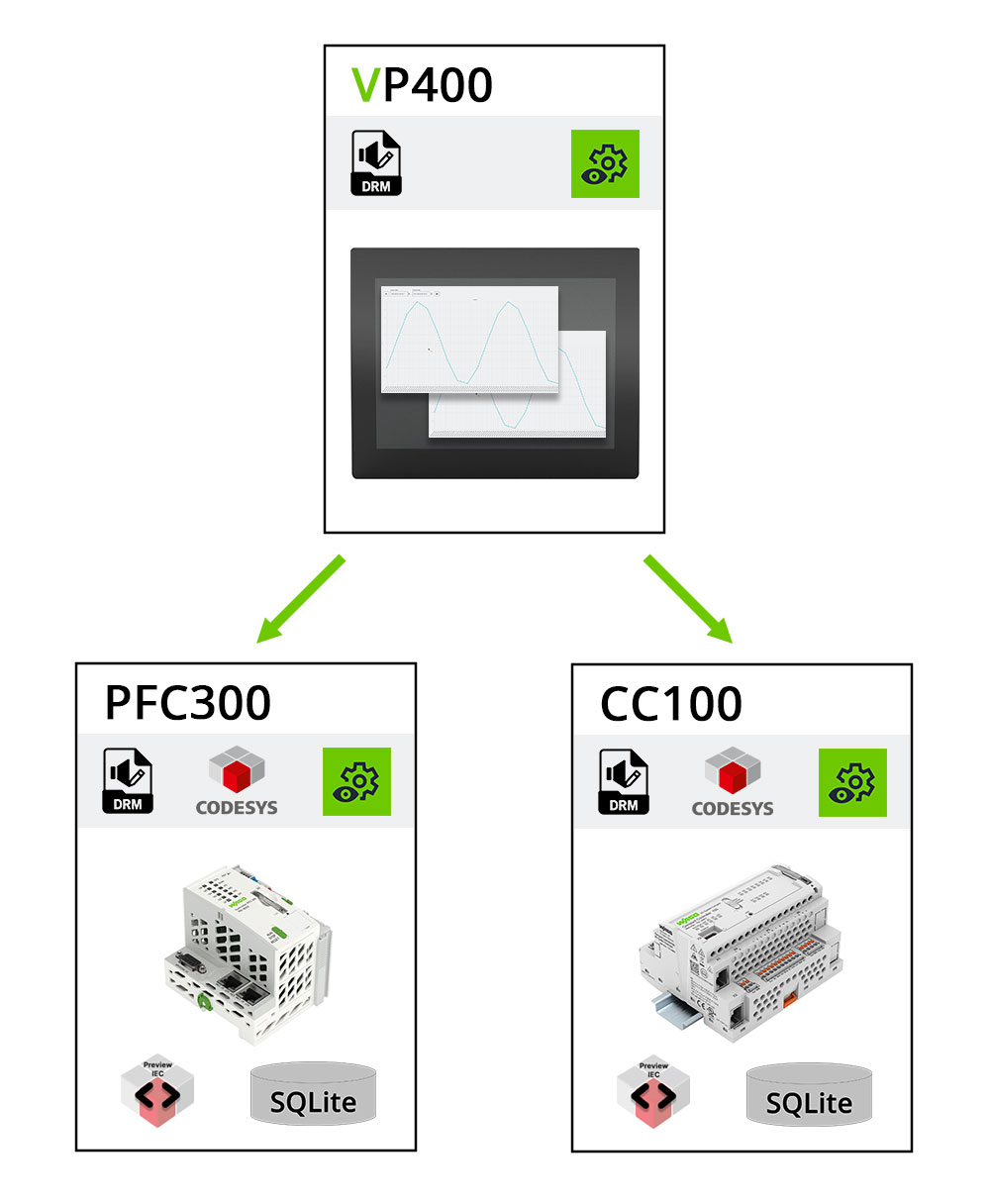

With a PlcVisu running on the WP400 you have generated a VP400.
You can visualize both devices (PFC300 and CC100) in parallel.
For the trend application you can see the trend charts via an iFrame control.
Prerequisites
- WP400: install PlcVisu on the device (the WP400 becomes a VP400)
- PFC300: Install CODESYS and PlcVisu
- CC100: Install CODESYS and PlcVisu
Downloads
| Name | Type | Version | Link | ChangeLog |
|---|---|---|---|---|
| CC100_Trend | PlcVisu project [.gz] | 1.0.0 | Download | 2025-08-07 12:51:33 |
| CC100_Trend | CODESYS [.projectarchive] | 1.0.0 | Download | 2025-08-07 12:51:49 |
| PFC300_Trend | PlcVisu project [.gz] | 1.0.0 | Download | 2025-08-07 12:56:02 |
| PFC300_Trend | CODESYS [.projectarchive] | 1.0.0 | Download | 2025-08-07 12:56:31 |
| WP400_Trend | PlcVisu project [.gz] | 1.0.0 | Download | 2025-08-07 01:24:16 |
| WP400_Trend | CODESYS [.projectarchive] | 1.0.0 | Download | 2025-08-07 01:24:36 |
