RemoteTable

Create your table direct inside of CODESYS.

1. define the meta struct

   TYPE MetaRow :
   STRUCT
    visible:BOOL;
   END_STRUCT
   END_TYPE

2. define the struct of the data elements, important is at the end include the struct meta.

   TYPE TableRowItem :
   STRUCT
    id      : UINT;
    name:STRING;
    value:REAL;
    toggle:BOOL;
    meta:MetaRow;
   END_STRUCT
   END_TYPE

3. define the struct for of the data array, the selectedIndex shows the selected row

   TYPE RemoteTable :
   STRUCT
    selectedIndex:INT;
    data    : ARRAY[0..50] OF TableRowItem;
   END_STRUCT
   END_TYPE

4. fill the data array with content

    FOR i:=0 TO 29 BY 1 DO
        remoteTable.data[i].id := UINT_TO_INT(i);
        remoteTable.data[i].name := 'name';
        remoteTable.data[i].value := INT_TO_REAL(i);
        remoteTable.data[i].meta.visible := TRUE;
    END_FOR

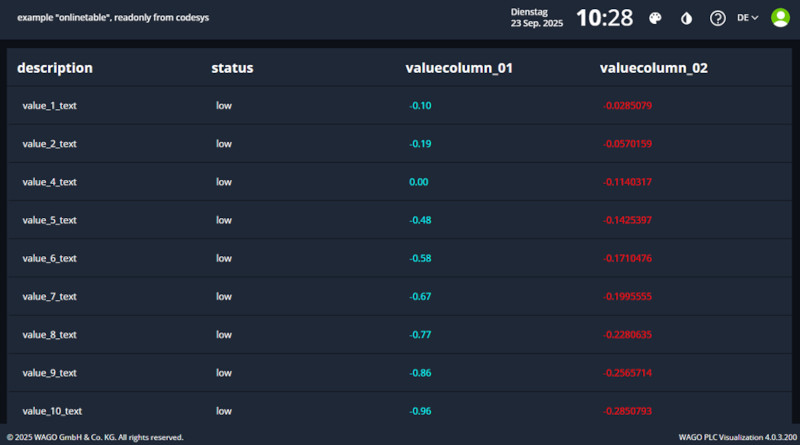

   Remote table inside of PlcVisu.

   Change Edit Mode

   call the Menue Tables->Tables->New


• select data source : Remote connection
• Remote connection : Choose the CODESYS variable of the instance of RemoteTable.

Change Run Mode

You can now edit the values online
